How to Clear Cue Firing Memory with IGNITE Lite

When firing your show with IGNITE Lite app, cues will turn red after being fired. This is a great way to keep track of what hasn't been fired yet, but sometimes you may want to reload the module with new igniters and keep firing your show. Since the red cues don't automatically reset when the module is switched off and on, we've added a way to clear the module's firing memory so you can start firing off a fresh batch of fireworks without having to restart the app.

Tip:

Clearing firing memory is only supported on IGNITE Lite module hardware versions 2.0 and higher. Not sure which you have? Check out How To Find Your IGNITE Lite Module Hardware Version.

Warning:

Always make sure your IGNITE Lite module is switched off before inserting igniters, especially if the igniter is already installed on a firework.

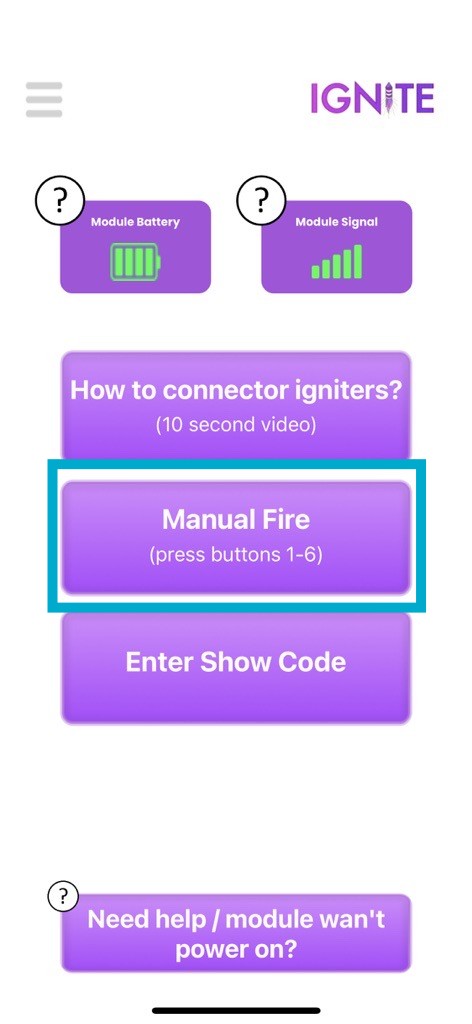

Step 1: Open the Manual Fire screen.

Open the IGNITE Lite App and tap Manual Fire.

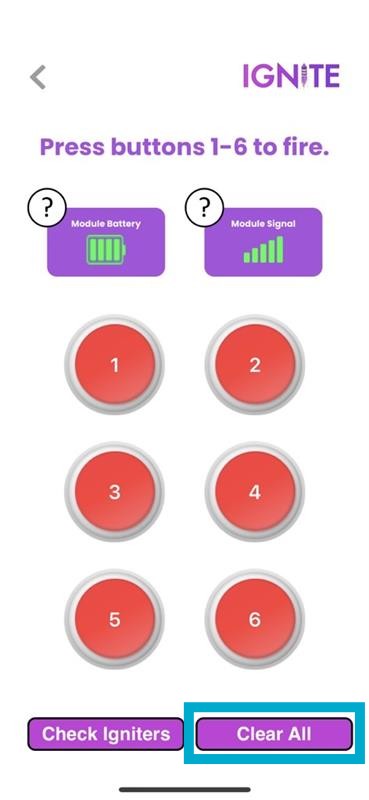

Step 2: Tap the Clear All button.

Locate and tap the Clear All button at the bottom of the screen.

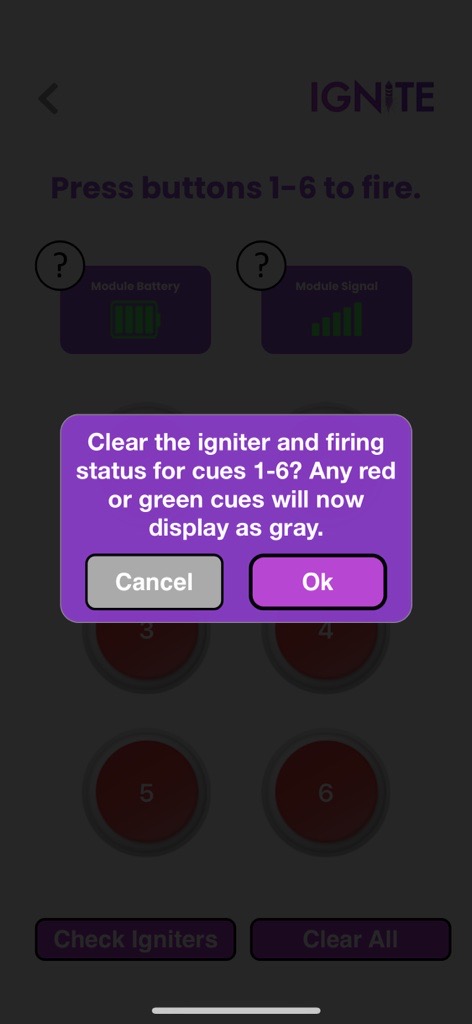

Step 3: Confirm you want the memory to be cleared.

A confirmation window will pop up. Tap OK to continue.

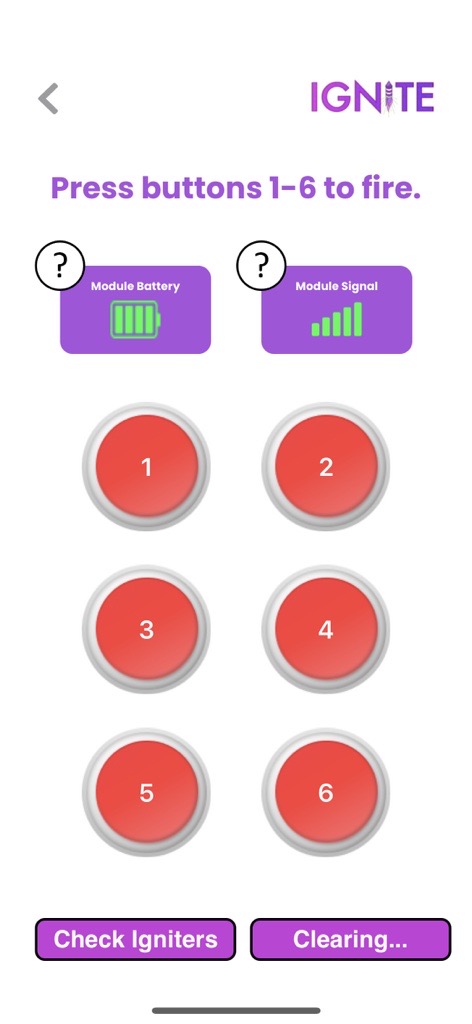

Step 4: Wait for the firing memory to be cleared.

The app will take a few moments to update the firing memory, with the Clear All button converting to a Clearing... message.

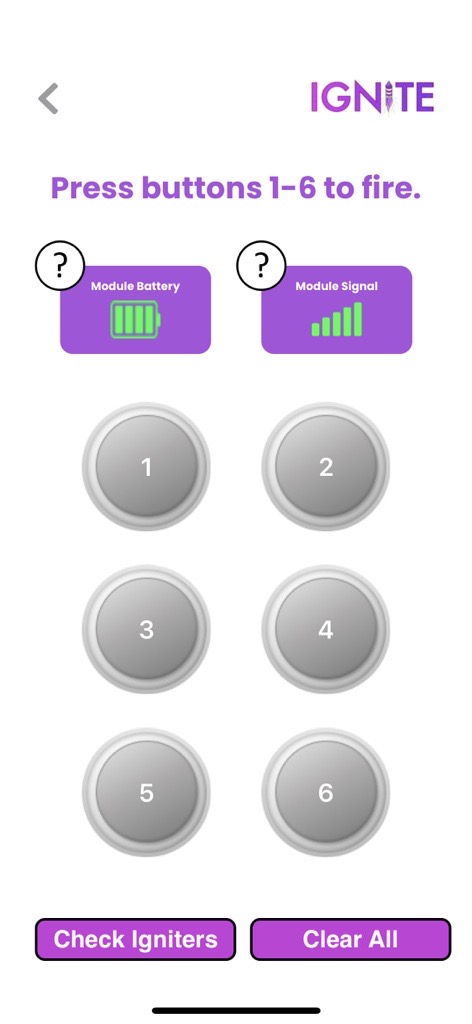

Step 5: View cleared firing memory.

The module's firing memory will now be cleared. All cues on the module will appear in grey.

Tip:

Ready to fire round two? Don't forget to run a continuity check first! See How to Check Connected Igniters for Continuity with IGNITE Lite for more info.

Need more help? Contact us, we're always happy to assist!
